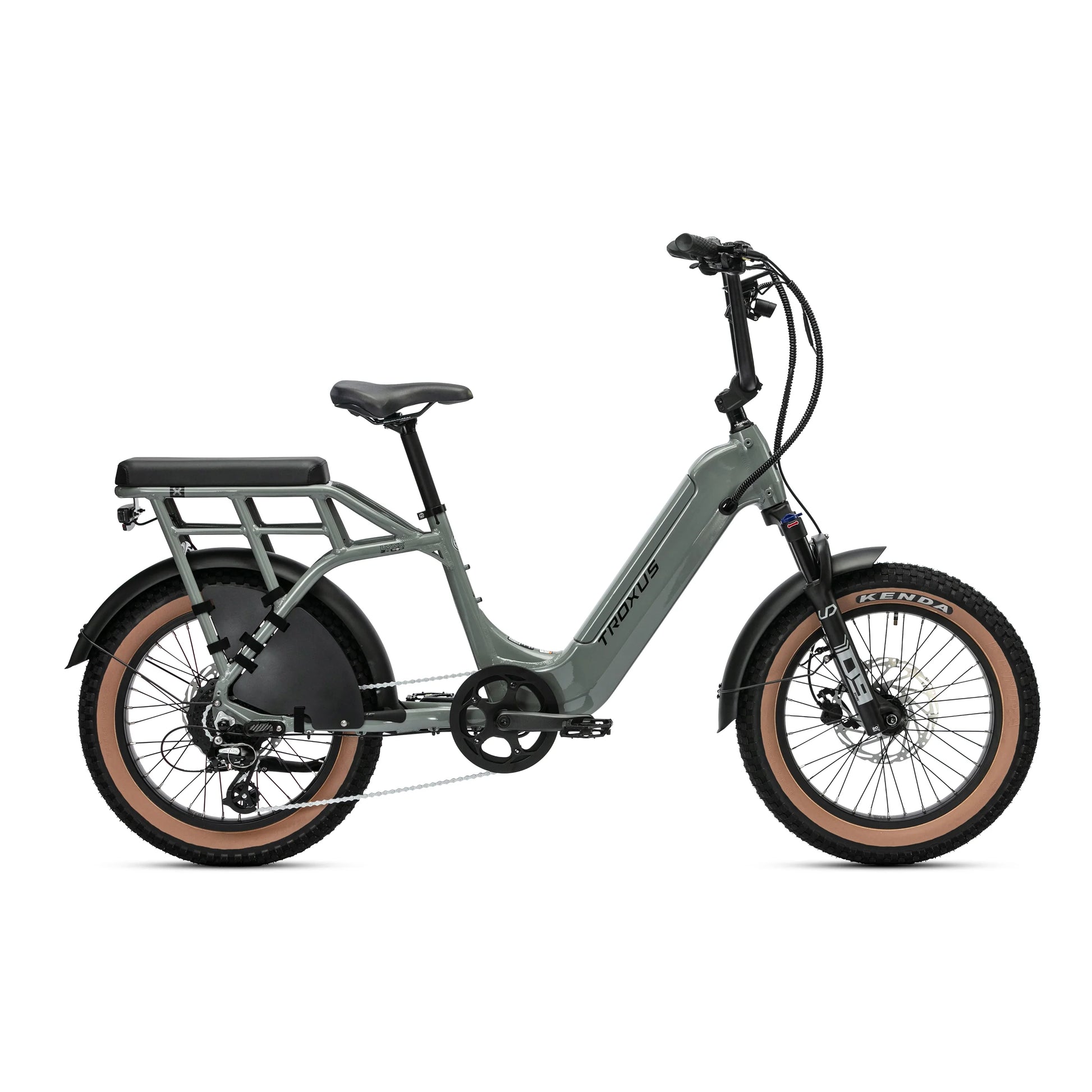

Troxus Lynx 2-Up Passenger Cargo e-Bike Class 2 PCEF
Troxus Lynx 2-Up Passenger Cargo e-Bike Class 2 PCEF
Couldn't load pickup availability
The Troxus Lynx-2Up is a compact two seater electric bike with a powerful 750 watt hub motor. The 48v 15Ah battery is UL2271 certified for safety and reliability. What will make you happy is the throttle assist and torque based pedal assist for easy riding everywhere. What makes bike shops happy are the e-bike ready mechanical drivetrain and hydraulic disc brakes. What makes your passenger happy is the included padded long cargo seat.
All 2024 and newer Troxus e-bikes are backed by an exclusive 5-year limited warranty.
From Troxus:
Built to turn heads and bring friends along for the ride, the Lynx 2-Up is a 2-seater electric bike designed for school commutes, weekend hangouts, and everything in between. With its powerful motor, welded rear rack, and standout style, it’s the go-to choice for all who seek freedom, fun, and serious functionality. The option to carry a passenger makes it perfect for rides to school and post-class meetups—like a trip to the local pizza place.
E-Systems
| Motor | Ananda® 48V/750W Hub-Drive Motor, 85Nm Peak Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Signals, w/ Multi-Function Remote |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0-5 Level Pedal Assist |
| Charger | 2A / 100-240V Input / 54.6V Output |
| Lights | 30 Lux Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx22A/12V |
Components
| Frame | 6061-T6 Aluminum Step-Thru Frame |
| Fork | Front Suspension Fork, 60mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Alloy Outer Chainguard, Square Taper, 152mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 11-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 20"x3.3", w/ Anti-Puncture Kevlar Belt |
| Front Hub | Alloy, 13Gx36H, O.L.D. 135mm, 3/8" Axle w/ Nuts, Length: 160mm |
| Rear Hub | Ananda® 48V 750W/ 28 MPH. 85Nm |
| Rims | Alloy Double Wall, 20"x3.3" w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 203mm / 203mm |
| Saddle | Troxus Comfort |
| Seat Post | Alloy, 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 38.5mm w/ Quick Release |
| Stem | Alloy, BMX style, Top-Load, 30º Angle, 50mm Extension |
| Handlebar | Alloy 6061-T6, 31.8mmx680mm Wide, 261mm Rise |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Internal 1-1/8" |
| Rear Shocks | N/A |
| Rack | Welded Aluminum Rack w/ Long Passenger Seat |
| Fender | Alloy, 20"x3.3", w/ Alloy Hardware |
| Kickstand | Adjustable Side Kickstand |
| Frame Size | Universal |
| Wheel Size | 20"x3.3" |
| A - Seat Tube Length | 406 |
| B - Seat Tube Angle | 73˚ |
| C - Head Tube Length | 145 |
| D - Head Tube Angle | 68˚ |
| E - Effective Top Tube Length | 645 |
| F - Bottom Bracket Height | 287 |
| G - Bottom Bracket Drop | 0 |
| H - Chainstay Length | 515 |
| I - Fork Offset | 46 |
| J - Wheelbase | 1261.5 |
| K - Frame Reach | 484 |
| L - Frame Stack | 528 |
| Fork Travel | 80 |
| Fork Height | 440 |
| Max Speed | Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist |
| Range | Up To 70 Miles Per Charge |
| Weight Limit | Maximum Load: 360 lbs / Rider: 240 lbs. / Rear Rack: 120 lbs. |
| Net Weight |
73.6 lbs. |
Stop by the shop or book online for a demo ride!
- Color: Grey
- Condition: new
- MPN: 10870100321
