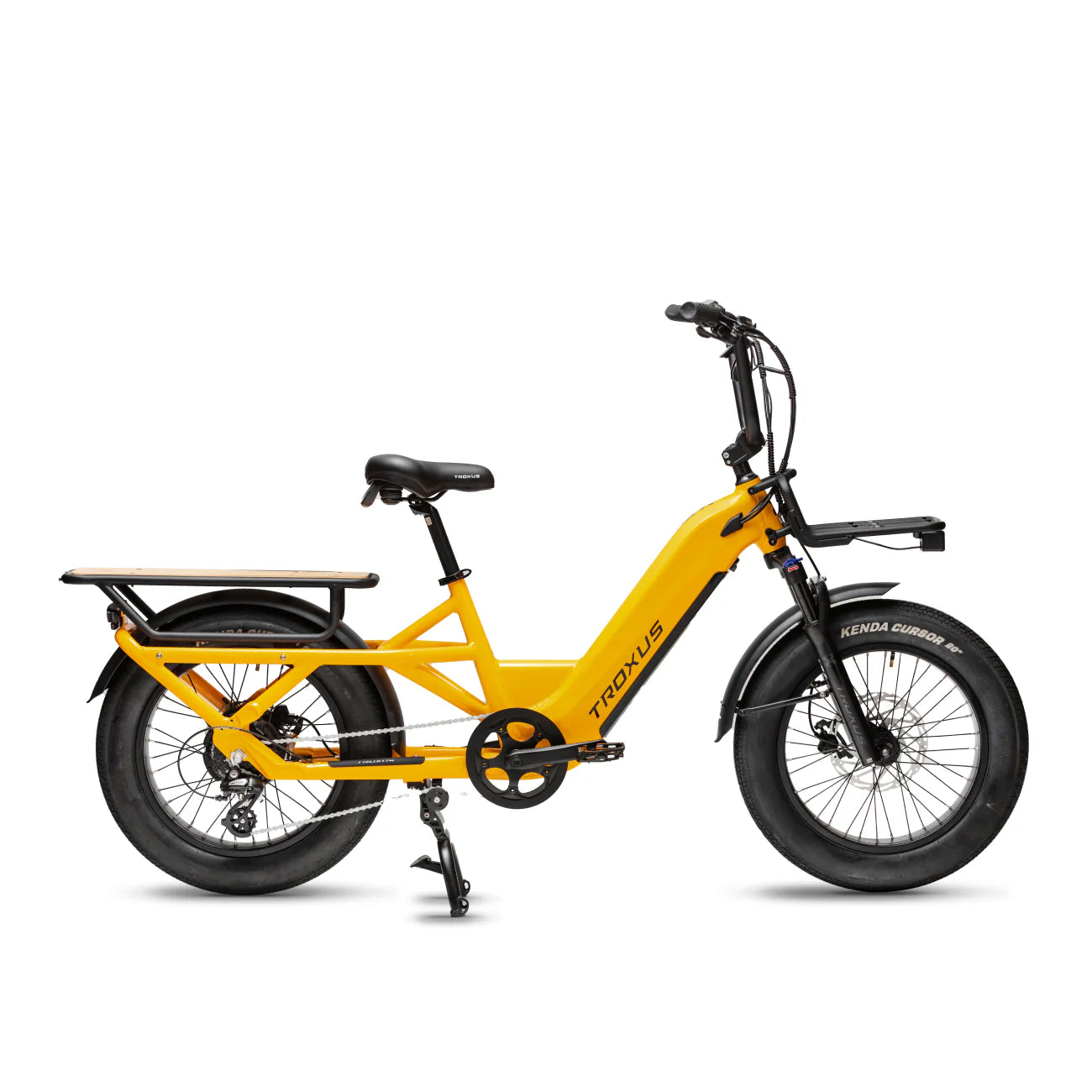

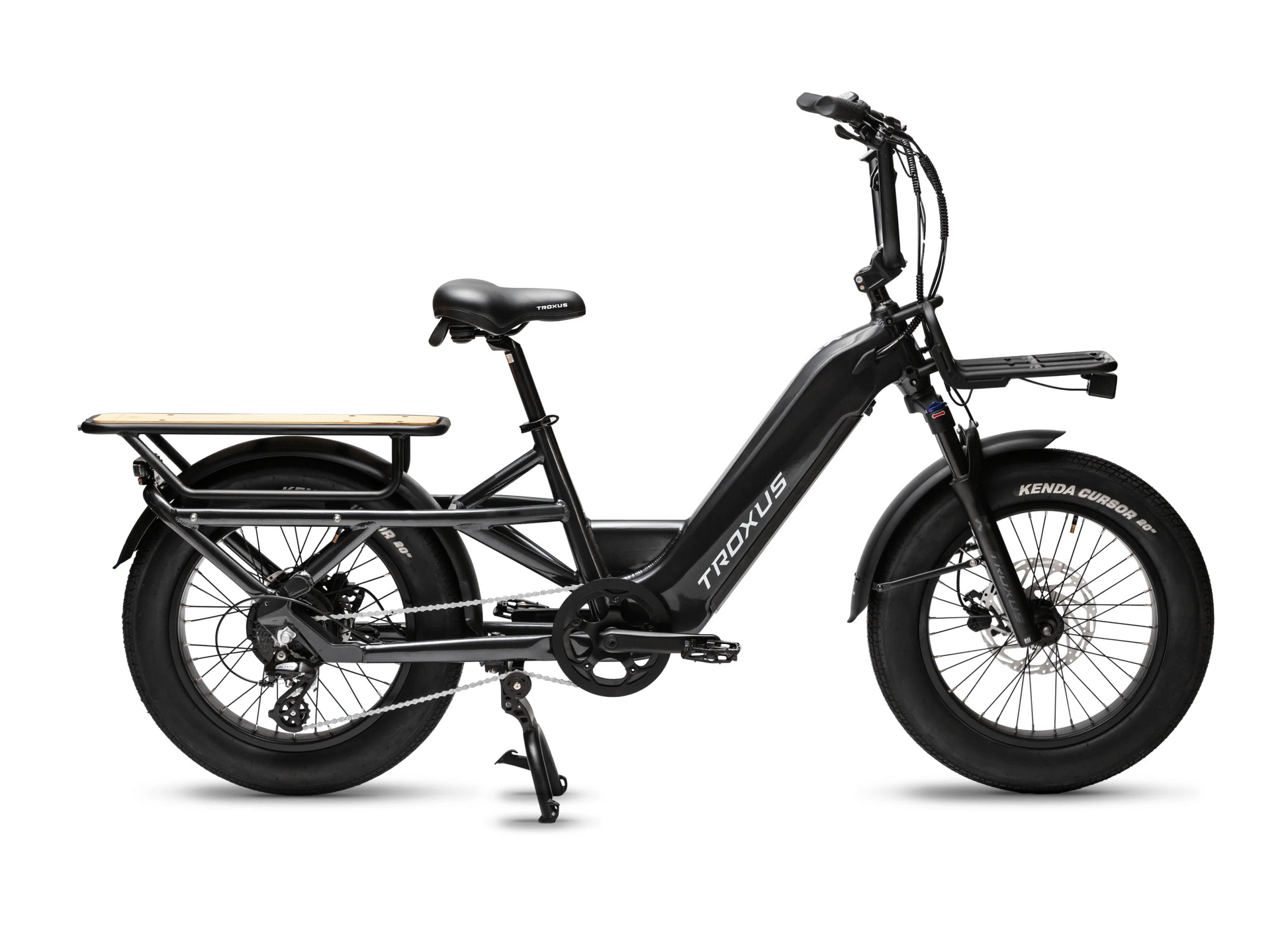

Troxus Lynx Cargo e-bike Class 2 PCEF
Troxus Lynx Cargo e-bike Class 2 PCEF
Couldn't load pickup availability
The Troxus Cargo e-bike is the lifestyle changer- Replace your SUV for the bigger trips with reliability and control. The Troxus Cargo is a 20mph Class 2 ebike, adaptable for the farmers market, free box scores, and neighborhood navigating. A reliable 750 watt Bafang hub motor and UL2271 certified 20amp Hour battery provides peace of mind too.
From Troxus:
All 2024 and newer e-bikes are backed by an exclusive 5-year limited warranty.
The ultimate two-wheeled cargo hauler, whether that cargo is kids, friends, groceries, or supplies for a day at the beach. The Lynx Cargo is built for fun and adaptability, with optional running boards and a rear seat with rails, capable of carrying more than 500 lbs in total! Having the ability to switch between torque or cadence sensors makes life with cargo even easier.
| Max Speed | Up To 20 MPH |
| Range | Up To 90 Miles Per Charge |
| Weight Limit | Maximum Load: 500 lbs |
| Net Weight | 80.5 lbs |
E-Systems
| Motor | Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
| Battery | UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells |
| Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
| Sensor | Switchable Torque And Cadence Sensor Modes |
| Pedal Assist | 0~5 Level Pedal Assist |
| Charger | 3A / 100-240V Input / 54.6V Output |
| Lights | Front Light, Rear Light w/ Turn & Hazard Signals |
| Controller | 48Vx22A/12V |
Components
| Frame | 6061-T6 Aluminum Step-Thru Cargo Frame |
| Fork | Front Suspension Fork, 80mm Travel |
| Chain | KMC® 1/2"x3/32" |
| Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm |
| Rear Derailleur | Shimano® RD-M310-L, Altus, 8-Speed |
| Cassette | Shimano® 8-Speed, 12-32T |
| Shifter | Shimano® 8-Speed |
| Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
| Tires | KENDA® 20"x4.0" |
| Front Hub | Alloy, 36H, 110mm, 3/8" Axle |
| Rear Hub | Bafang® 48V 750W/ 28 MPH. 86Nm |
| Rims | Alloy Double Wall, 20"x4.0" w/ Eyelets |
| Spokes | Stainless 13G. Front / 12G. Rear |
| Brakes | Tektro® Hydraulic, w/ Brake Sensors |
| Rotors | 203mm / 180mm |
| Saddle | Troxus Comfort w/ Back Handle |
| Seat Post | Alloy, 30.9x400mm, Adjustable |
| Seat Post Clamp | Alloy, 35mm w/ Quick Release |
| Stem | Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension |
| Handlebar | Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise |
| Grips | Ergonomic Comfort |
| Pedals | 9/16″ Alloy Platform with Reflectors |
| Headset | Threadless, Locking Internal 1-1/8" |
| Rear Shocks | N/A |
| Rack | Alloy / Front & Integrated Rear Models |
| Fender | Alloy, 20"x4.0" w/ Alloy Hardware |
| Kickstand | Central Kickstand |
| Frame Size | Universal |
| Wheel Size | 20"x4.0" |
| A - Seat Tube Length | 375 |
| B - Seat Tube Angle | 71˚ |
| C - Head Tube Length | 145 |
| D - Head Tube Angle | 68˚ |
| E - Effective Top Tube Length | 642 |
| F - Bottom Bracket Height | 285 |
| G - Bottom Bracket Drop | 10 |
| H - Chainstay Length | 540 |
| I - Fork Offset | 46 |
| J - Wheelbase | 1260 |
| K - Frame Reach | 457 |
| L - Frame Stack | 538 |
| Fork Travel | 80 |
| Fork Height | 440 |
- Condition: new
