Troxus Lynx Plus e-cargo bike MIK compatble Class 2 PCEF

Troxus Lynx Plus e-cargo bike MIK compatble Class 2 PCEF

$1,999.00 USD
$2,199.00 USD $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.

The secret to the Lynx+ cargo short tail is the Bike shop component level spec on it:

  • Tektro Hydraulic disc brakes (not substandard cable actuated brakes)
  • Shimano 8 speed Acera freehub based component range drivetrain (not 7 speed Shimano tourney freewheel built for cruisers)
  • Integrated rear rack MIK compatible for carrying little ones and furry ones up to 100lb capacity
  • 20x4" tires with dual purpose treads and anti puncture protection in the casing
  • Class 2 ready throttle for confidence anywhere

Most any other bike in this pricepoint or direct to consumer is simply not comparable. Professional assembly and knowledgeable service at TomCat Bikes makes this a great e-bike for the commute, errands, and off list side-quests. The Lynx Plus cargo e-bike qualifies for the Portland Rides PCEF electric cargo bike category.

From Troxus:

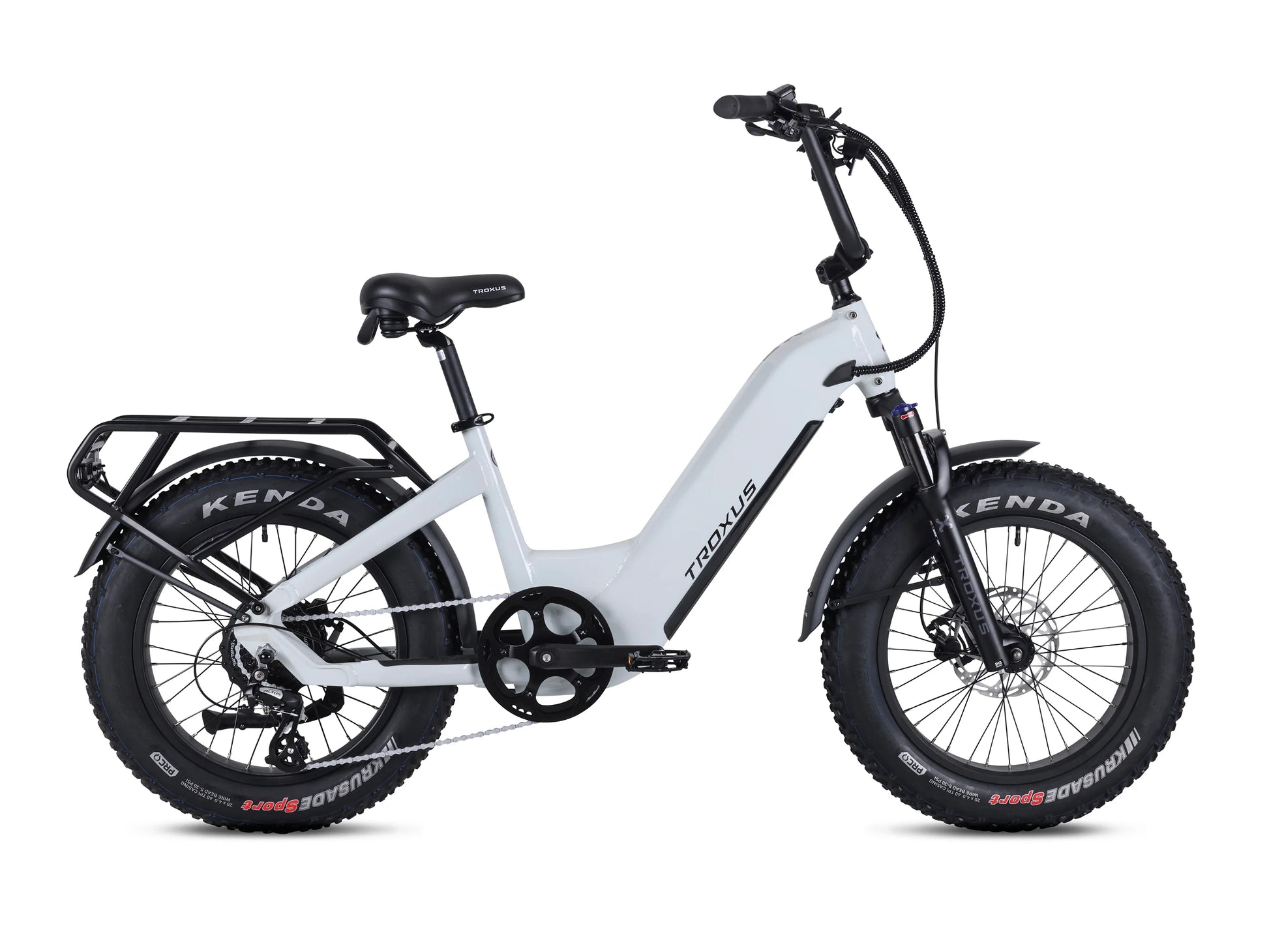

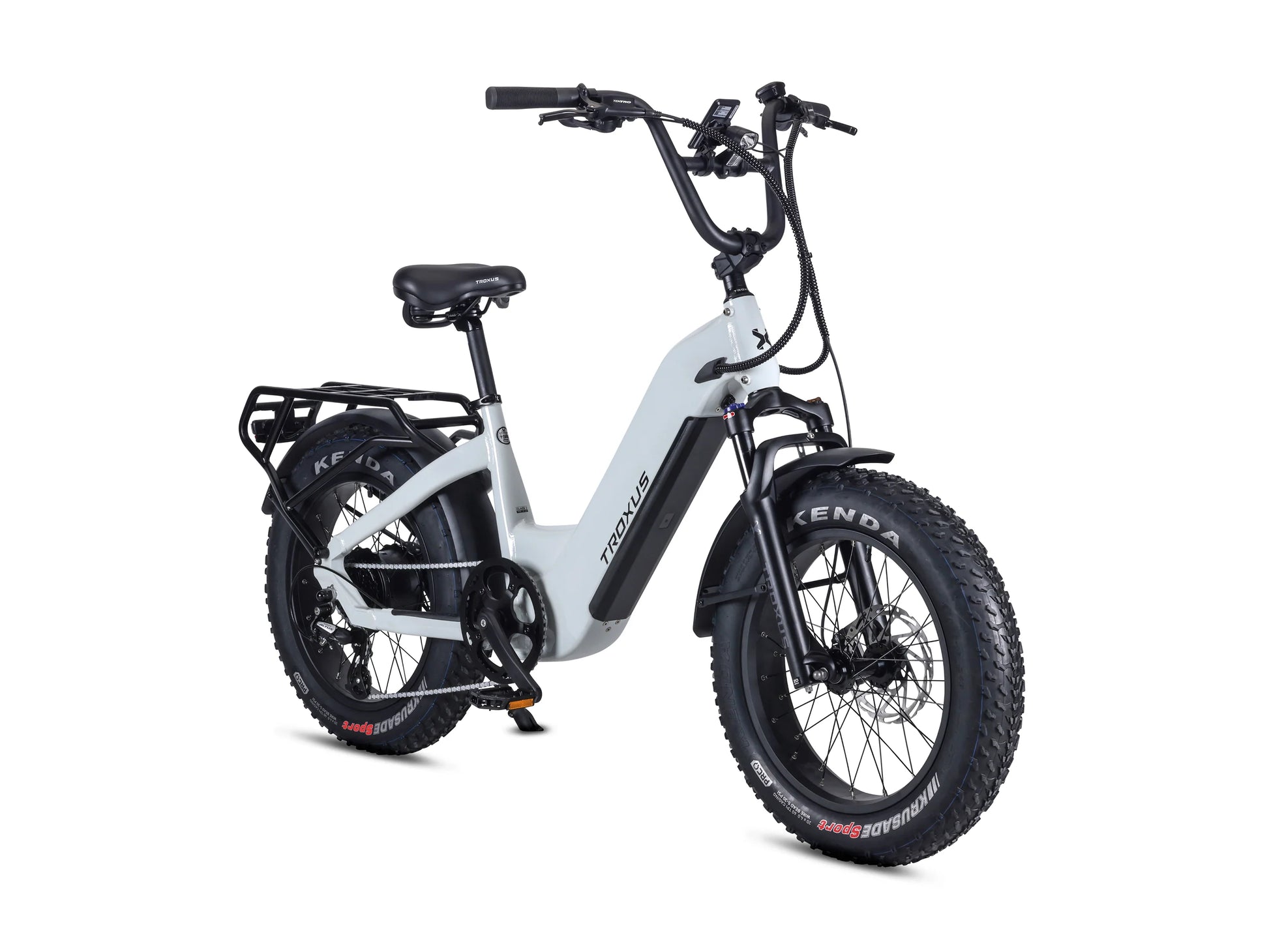

The updated Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it’s perfect for city dwellers, but with 20” fat tires, it can escape the urban jungle to explore nature too. With its redesigned semi-integrated rear rack, with MIK compatibility, it can carry up to 100 lbs. on the rear rack and 400 lbs. total, making the Lynx Plus ultra-capable.
All 2024 and newer Troxus e-bikes are backed by an exclusive 5-year limited warranty





Frame Size Universal
Wheel Size 20"x4.0"
A - Seat Tube Length 375
B - Seat Tube Angle 71˚
C - Head Tube Length 145
D - Head Tube Angle 68˚
E - Effective Top Tube Length 645
F - Bottom Bracket Height 285
G - Bottom Bracket Drop 10
H - Chainstay Length 425
I - Fork Offset 46
J - Wheelbase 1148
K - Frame Reach 460
L - Frame Stack 538
Fork Travel 80
Fork Height 440



Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 90 Miles Per Charge
Weight Limit Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs
Net Weight 77.2 lbs



E-Systems

Motor Ananda 48V/750W Hub-Drive Motor, 86Nm Max. Torque
Battery UL-2271 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
Display Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
Sensor Switchable Torque And Cadence Sensor Modes
Pedal Assist 0~5 Level Pedal Assist
Charger 3A / 100-240V Input / 54.6V Output
Lights Front Light, Rear Light w/ Turn & Hazard Signals
Controller 48Vx22A/12V

Components

Frame 6061-T6 Aluminum Step-Thru Frame
Fork Front Suspension Fork, 80mm Travel
Chain KMC® 1/2"x3/32"
Crankset Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm
Rear Derailleur Shimano® RD-M310-L, Altus, 8-Speed
Cassette Shimano® 8-Speed, 12-32T
Shifter Shimano® 8-Speed
Bottom Bracket Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires KENDA® 20"x4.0", w/ Anti-Puncture K-Shield
Front Hub Alloy, 36H, 110mm, 3/8" Axle
Rear Hub Bafang® 48V 750W/ 28 MPH. 86Nm
Rims Alloy Double Wall, 20"x4.0" w/ Eyelets
Spokes Stainless 13G. Front / 12G. Rear
Brakes Tektro® Hydraulic, w/ Brake Sensors
Rotors 180mm / 160mm
Saddle Troxus Comfort w/ Back Handle
Seat Post Alloy, 30.9x400mm, Adjustable
Seat Post Clamp Alloy, 35mm w/ Quick Release
Stem Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
Handlebar Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise
Grips Ergonomic Comfort
Pedals 9/16″ Alloy Platform with Reflectors
Headset Threadless, Locking Internal 1-1/8"
Rear Shocks N/A

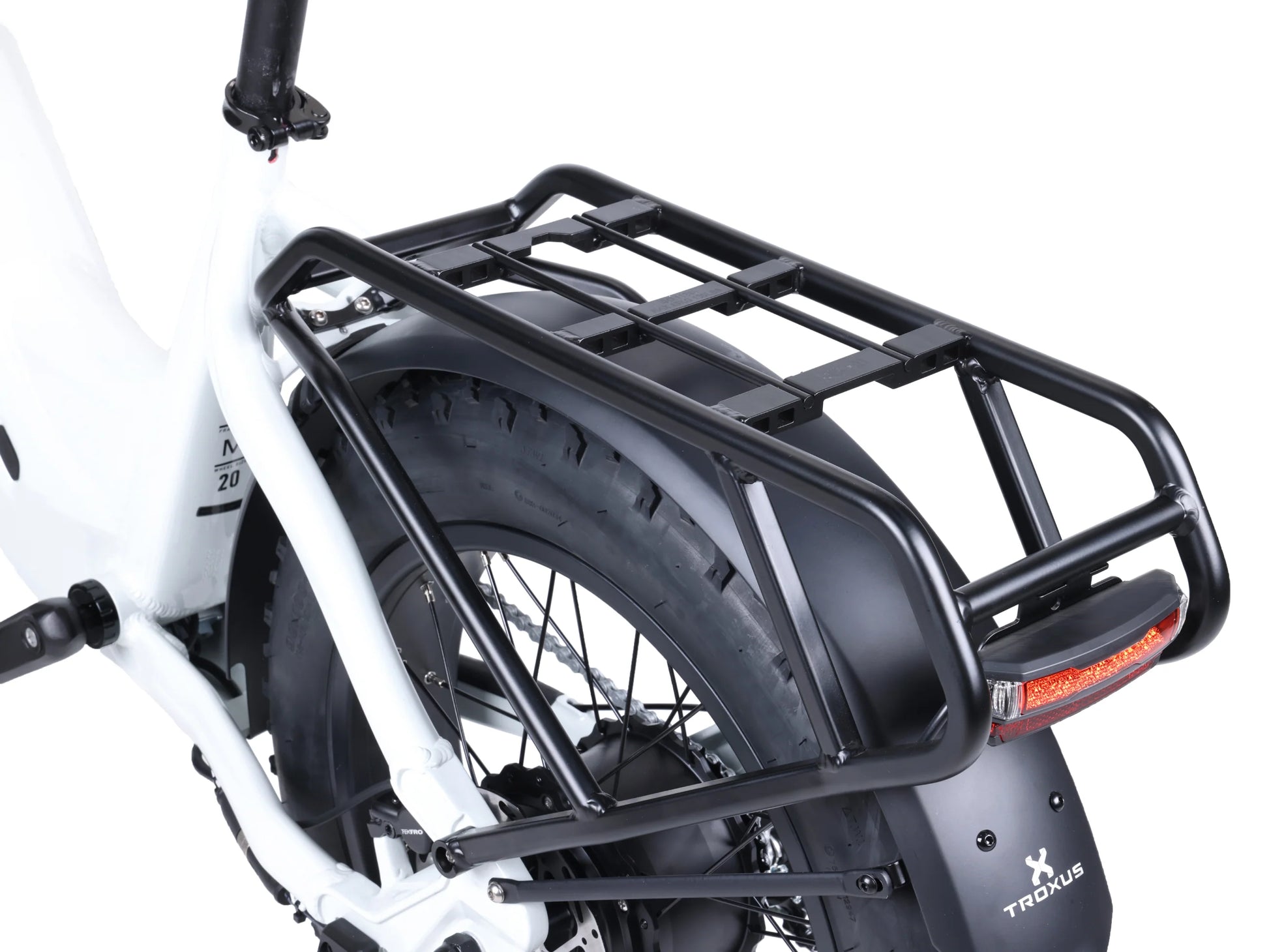

Rack Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack
Fender Alloy, 20"x4.0" w/ Alloy Hardware
Kickstand Adjustable Side Kickstand
  • Color: White
  • Condition: new
  • MPN: 10870100320
