Trek Farley 9.6 Carbon fatbike SRAM Eagle 1x12 size small red blue teal fade MY2022

Name: Trek Farley 9.6 Carbon fatbike SRAM Eagle 1x12 size small red blue teal fade MY2022
Brand: TomCat Bikes
Price: 2159.0 USD
Availability: InStock

$2,159.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

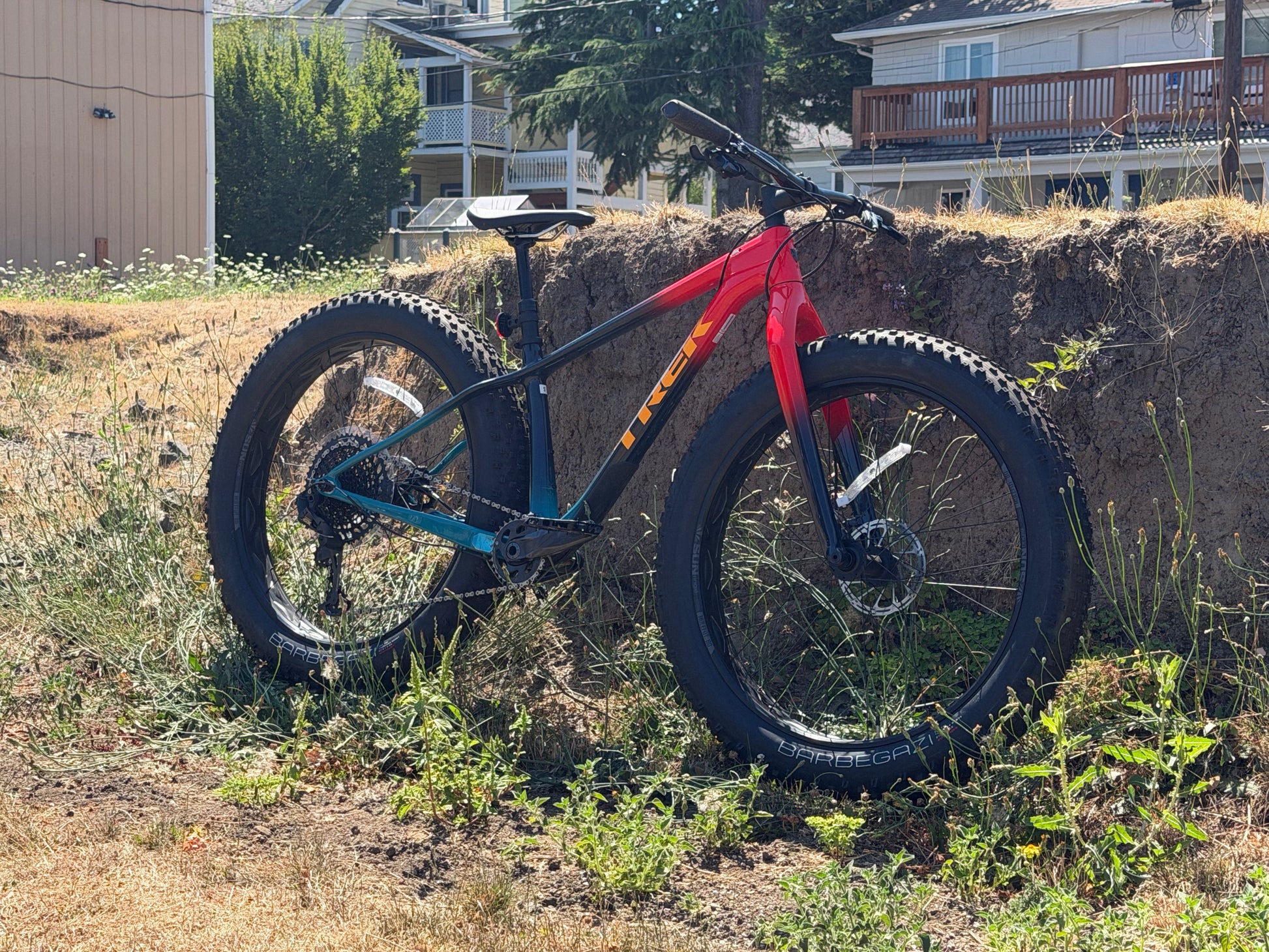

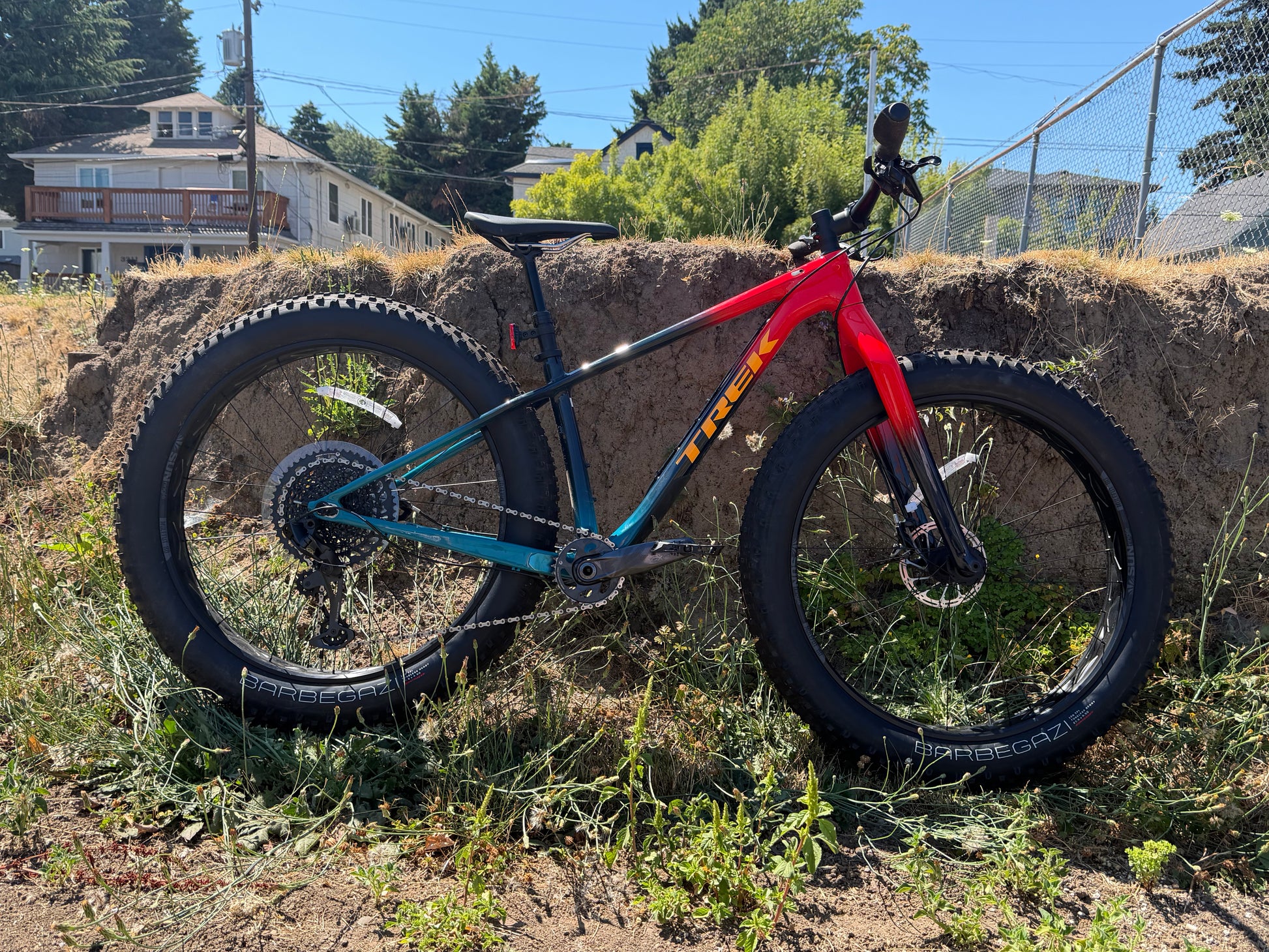

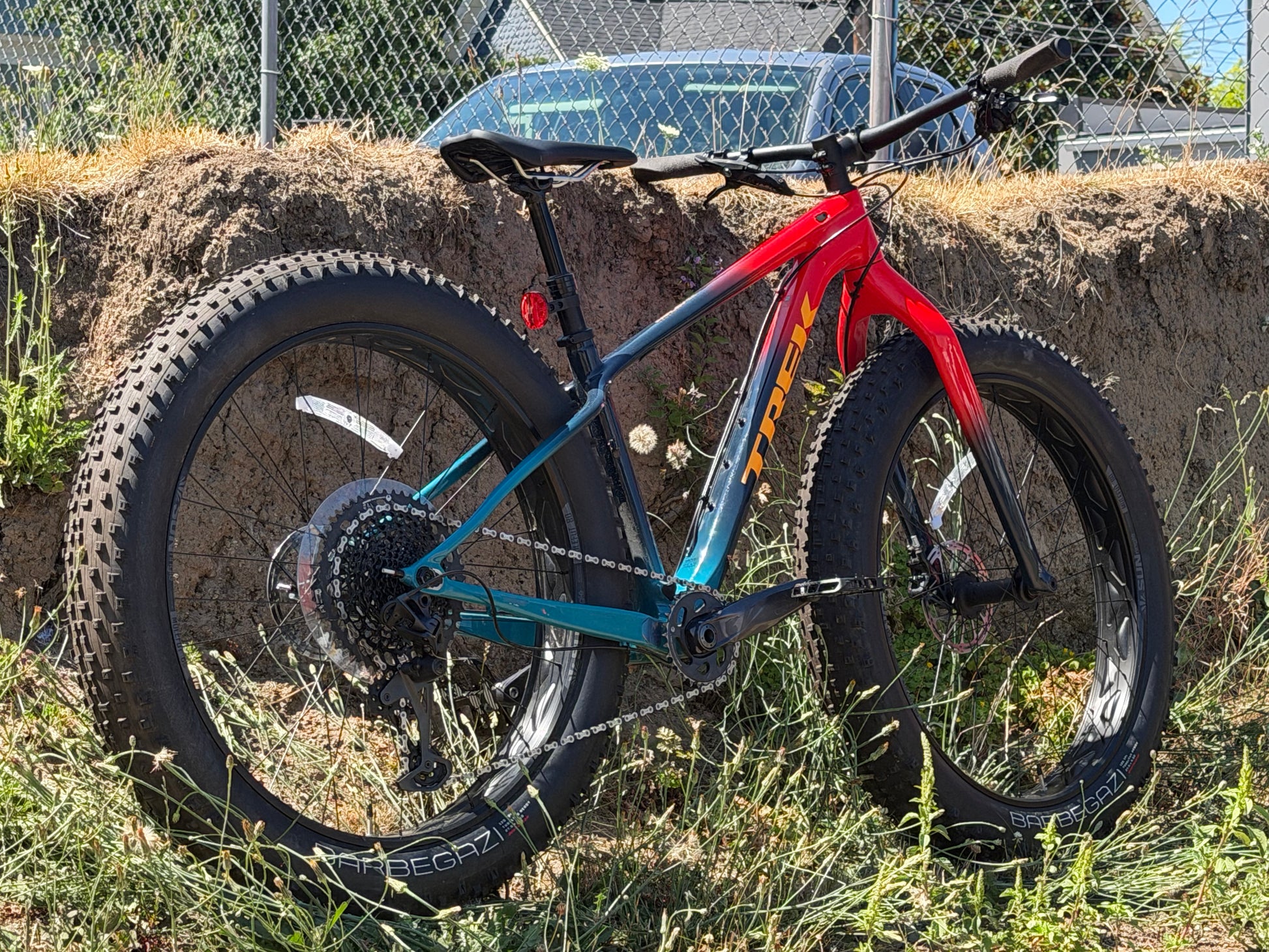

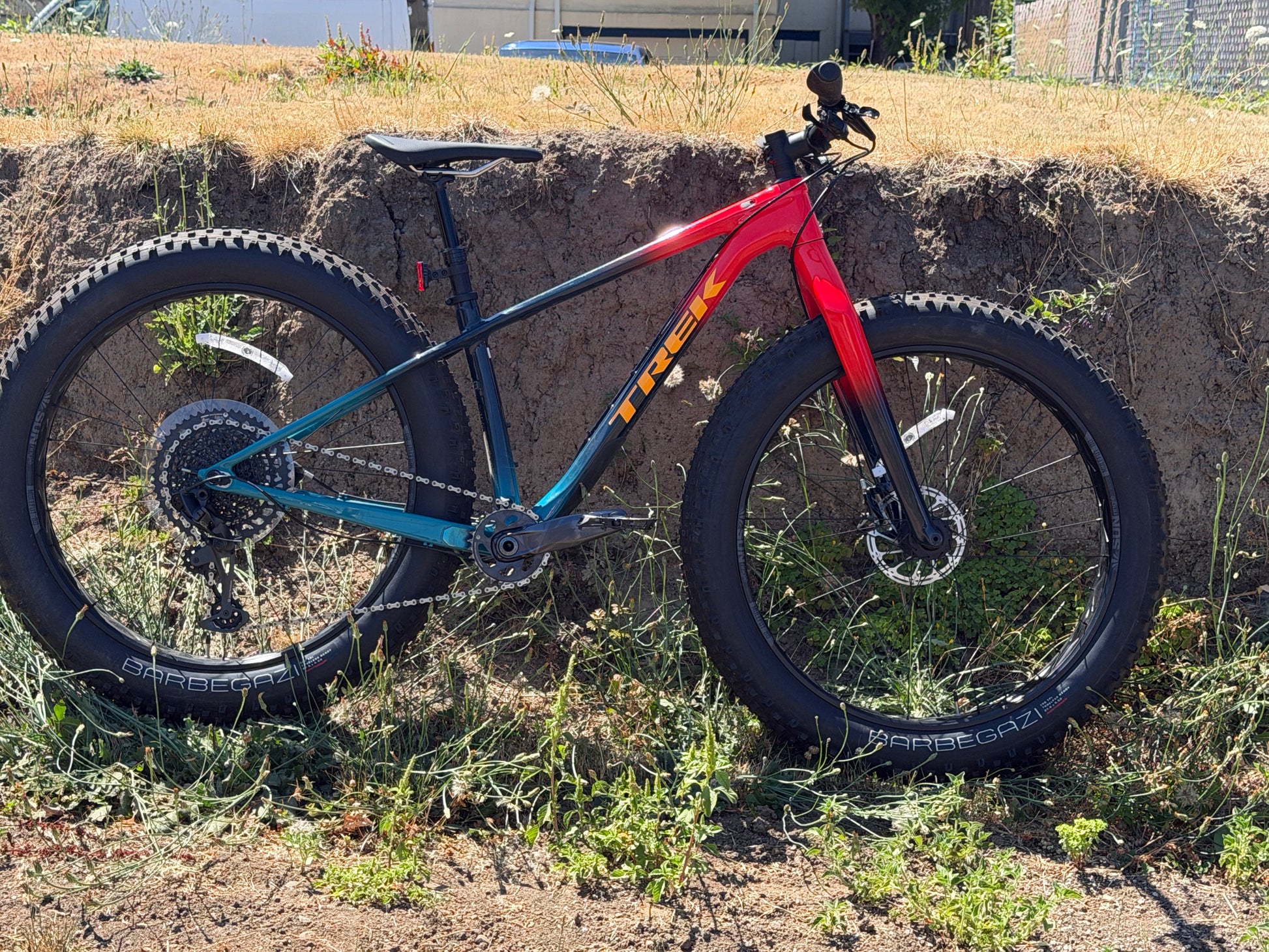

You don’t see many carbon frame fat bikes these days. This 2022 Trek Farley 9.6 is peak Fatness with SRAM eagle 1x12 group and Level TL DOT fluid brakes. Wide range gearing and plenty of stopping power for a small frame rider!
Super cool Radioactive Red to Navy to Teal Fade with some nice upgrades to the touch points: PDW cork chop grips, dropper post, e13 pedals.

Below is Spec sheet from Trek. I have updated the spec based on the bike we are selling here.

*Please note - spec applies to all sizes unless listed separately

Frame: OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts
Fork: Bontrager Haru, tapered alloy steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle

Hub front

Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
Skewer front: Bontrager Switch thru axle

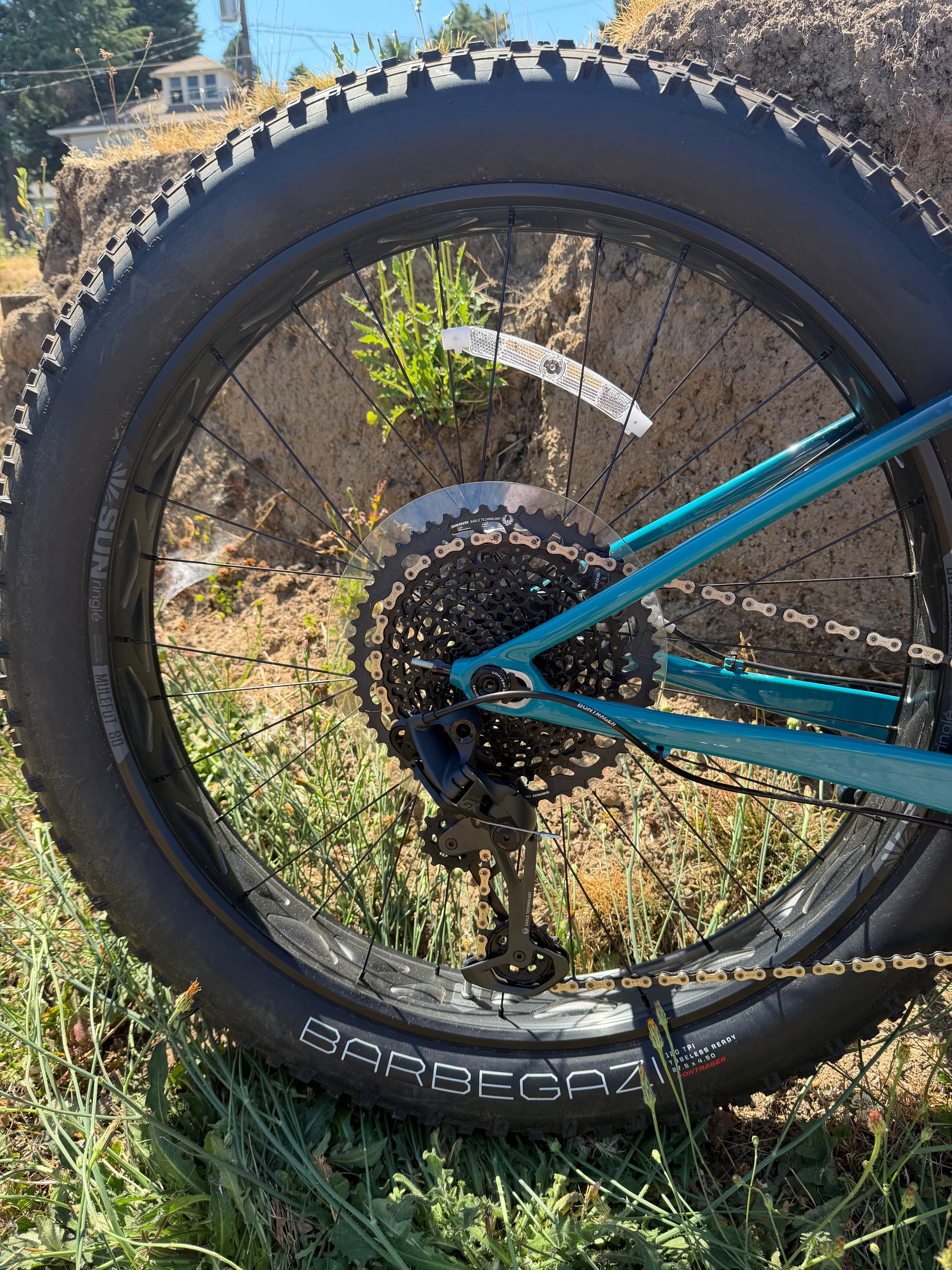

Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD driver, 197x12 mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: SUNRingle Mulefut 80 SL, 32-hole cutout

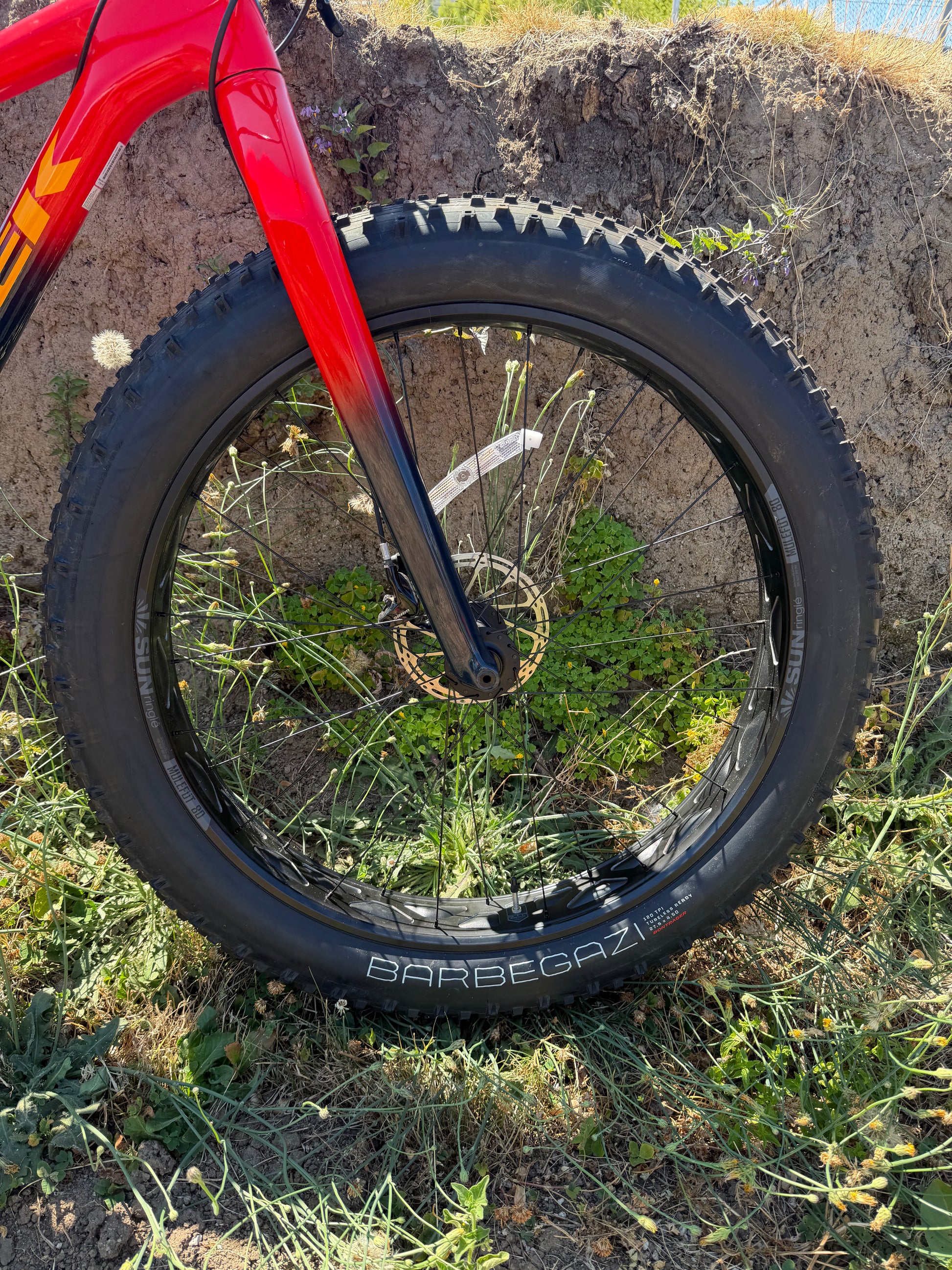

Tire: Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50''
Max tire size: Frame: 27.5x4.50" or 26x4.70", Fork: See manufacturer

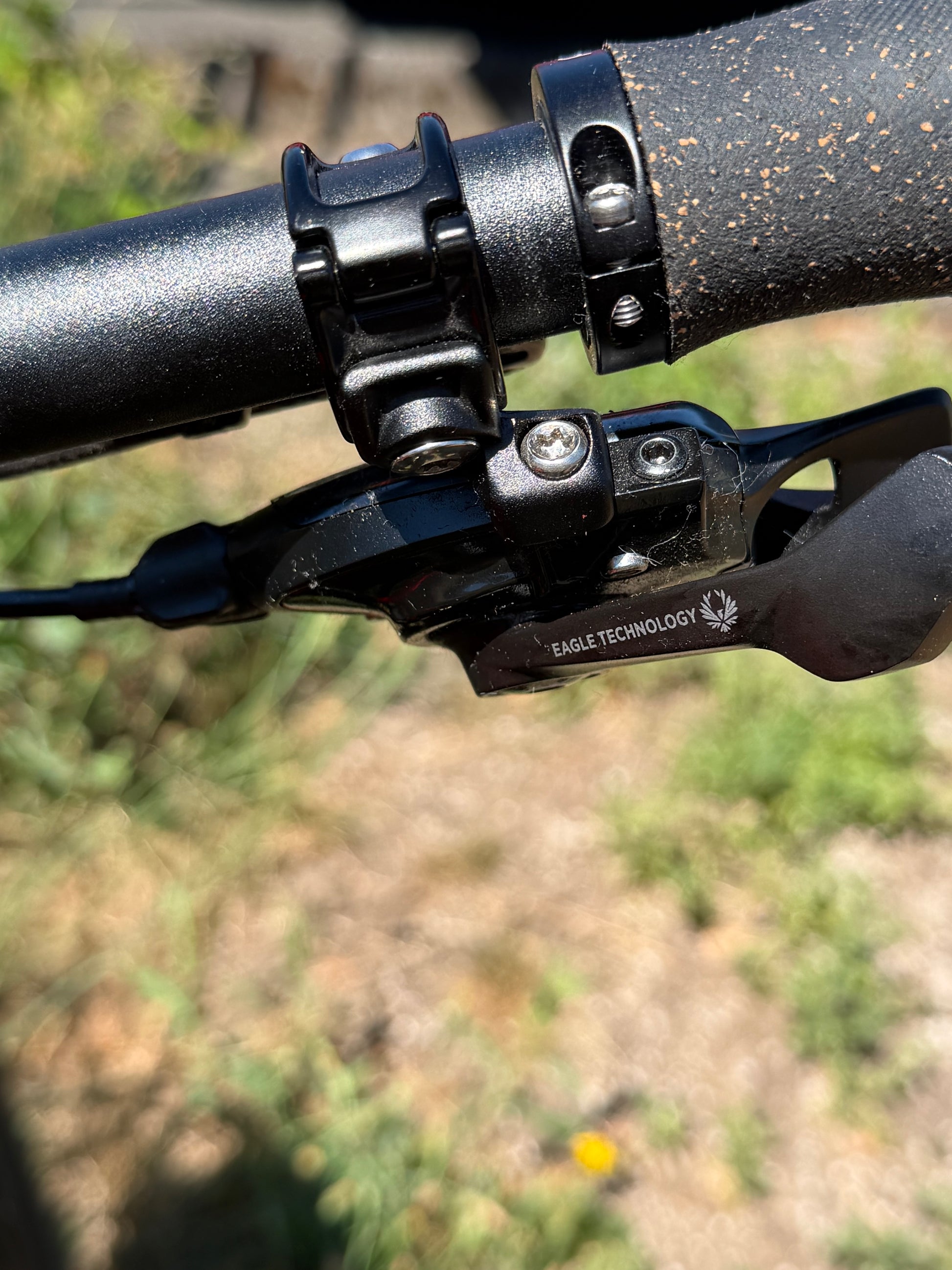

Shifter: SRAM GX Eagle, 12 speed

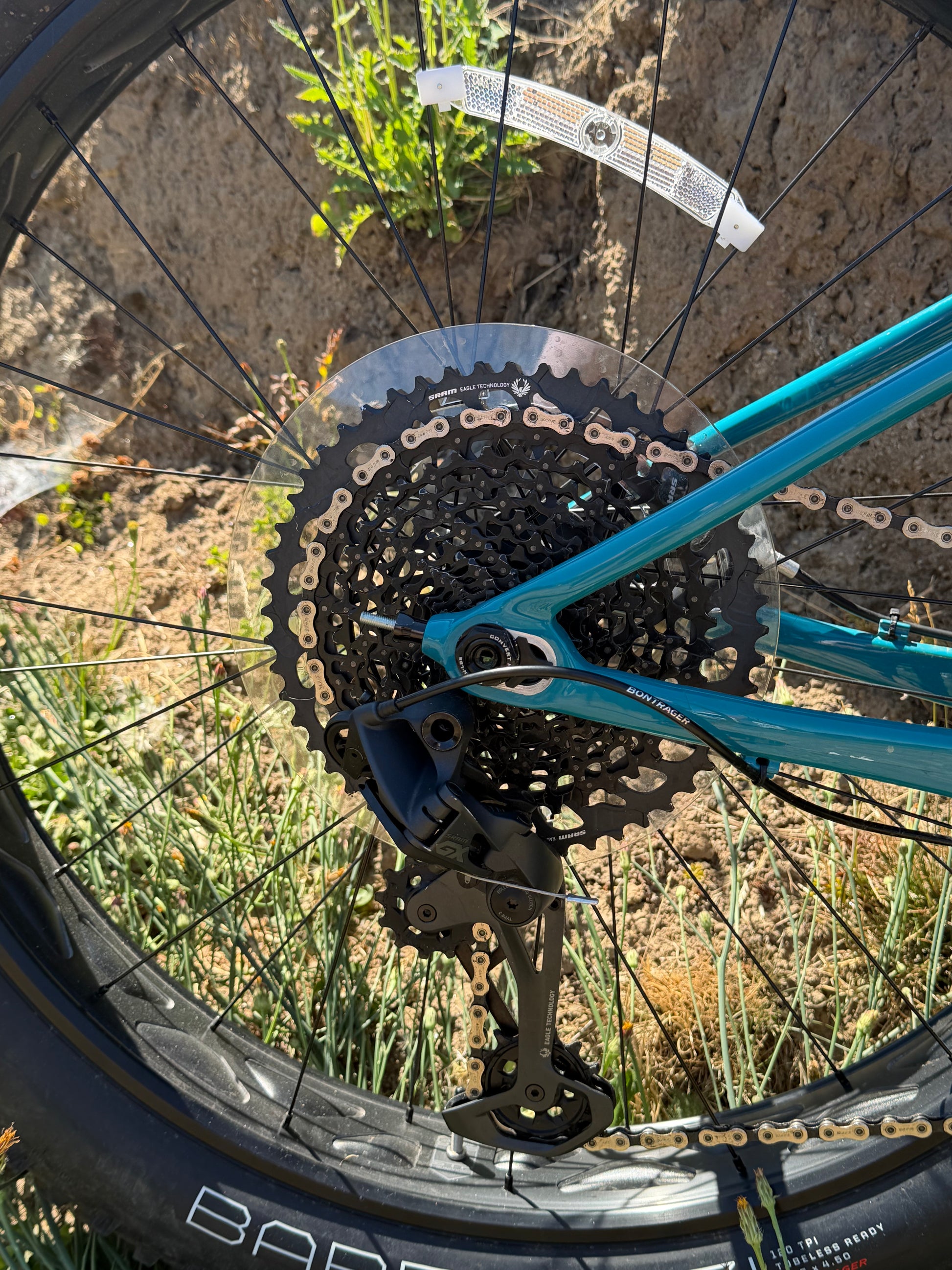

Rear derailleur: SRAM GX Eagle
*Crank: Size: S, M

SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 170mm length
Bottom bracket: SRAM DUB, 121mm, PressFit

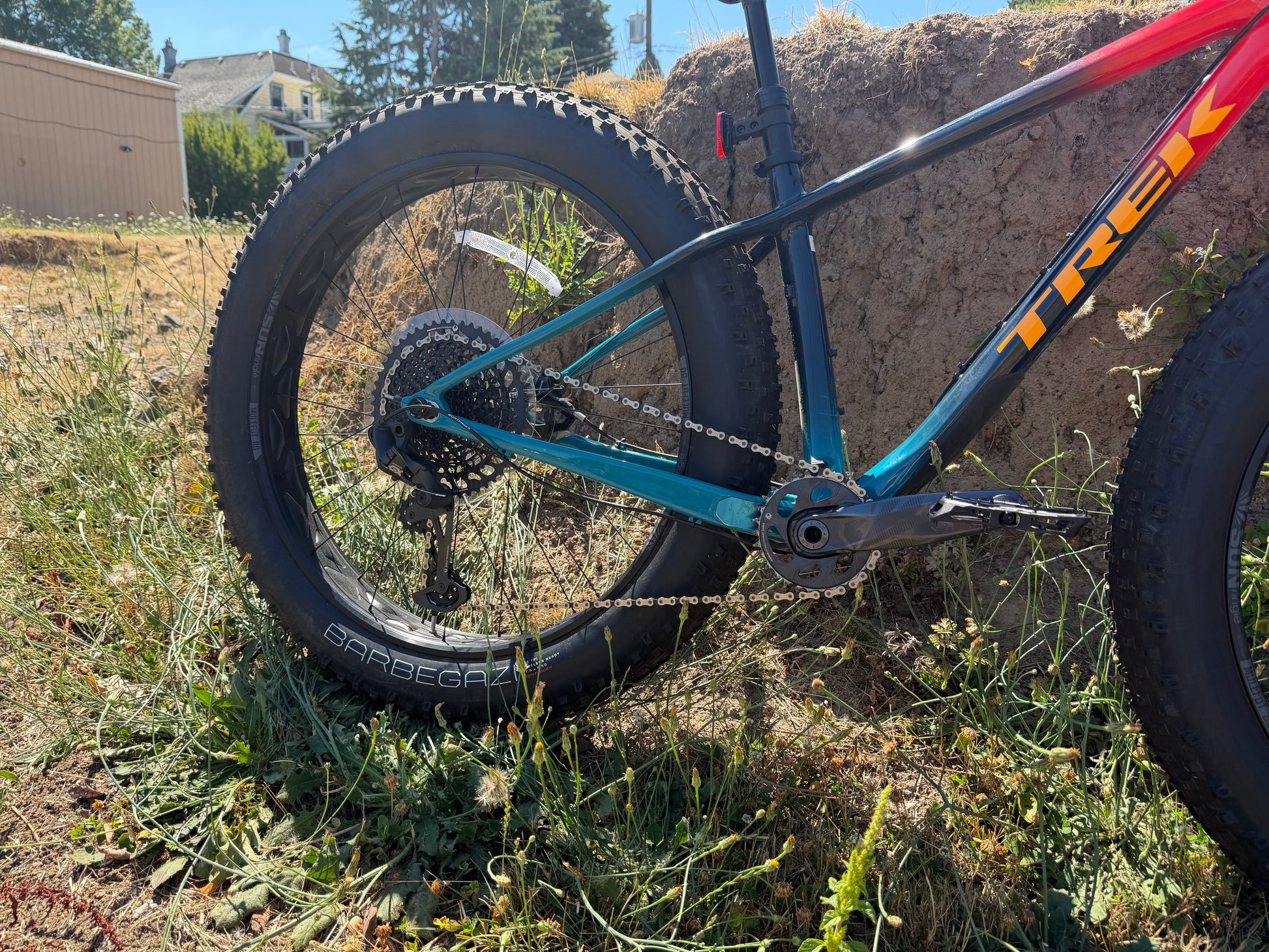

Cassette: SRAM Eagle XG-1275, 10-52, 12 speed
Chain: SRAM GX Eagle, 12 speed
Pedal: e-13 Alloy with traction spikes
Max chainring size: 1x: 32T, 2x: 36/22

Saddle: Bontrager Arvada, hollow chromoly rails, 138mm width
*Seatpost: Size: S

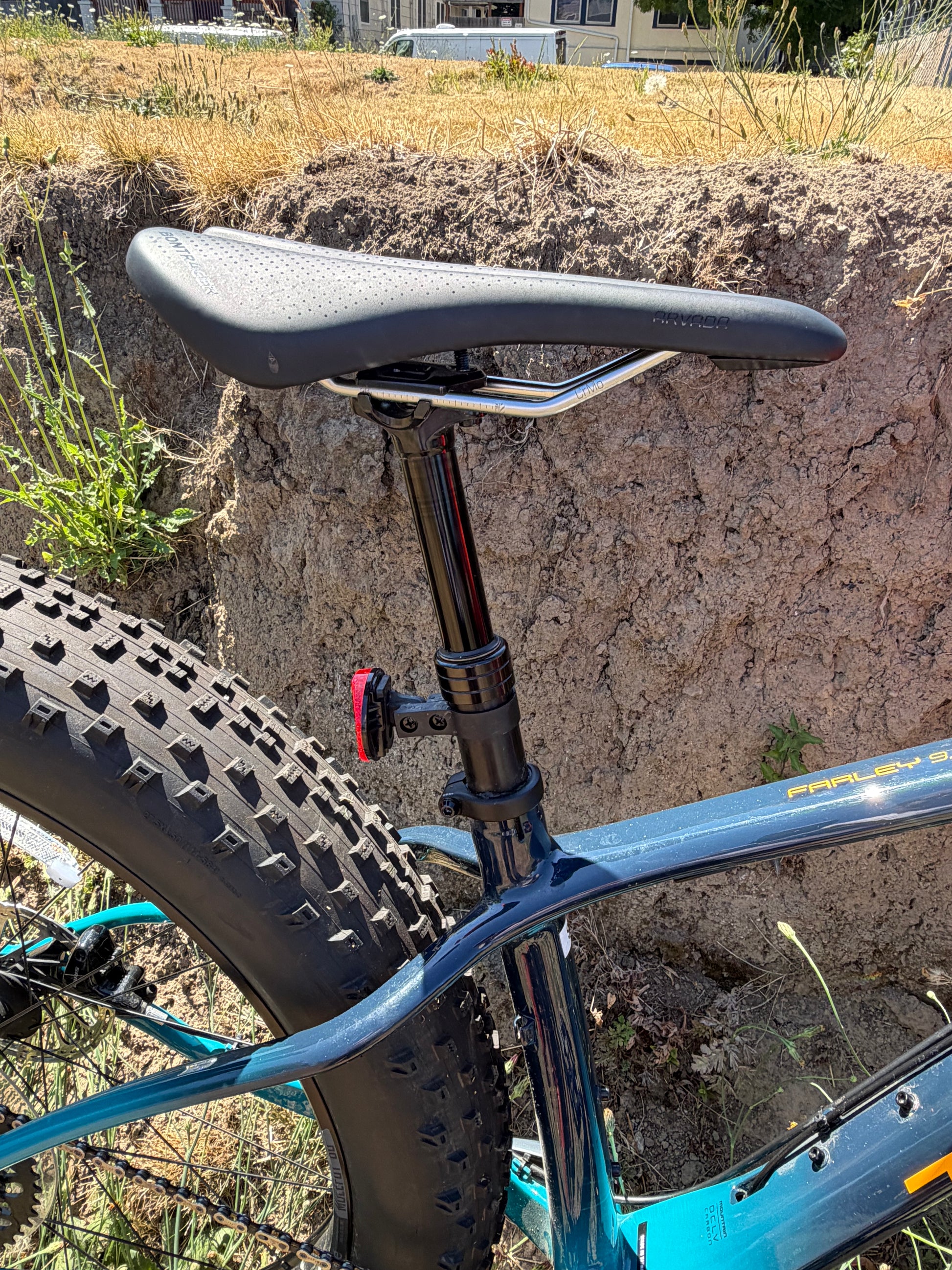

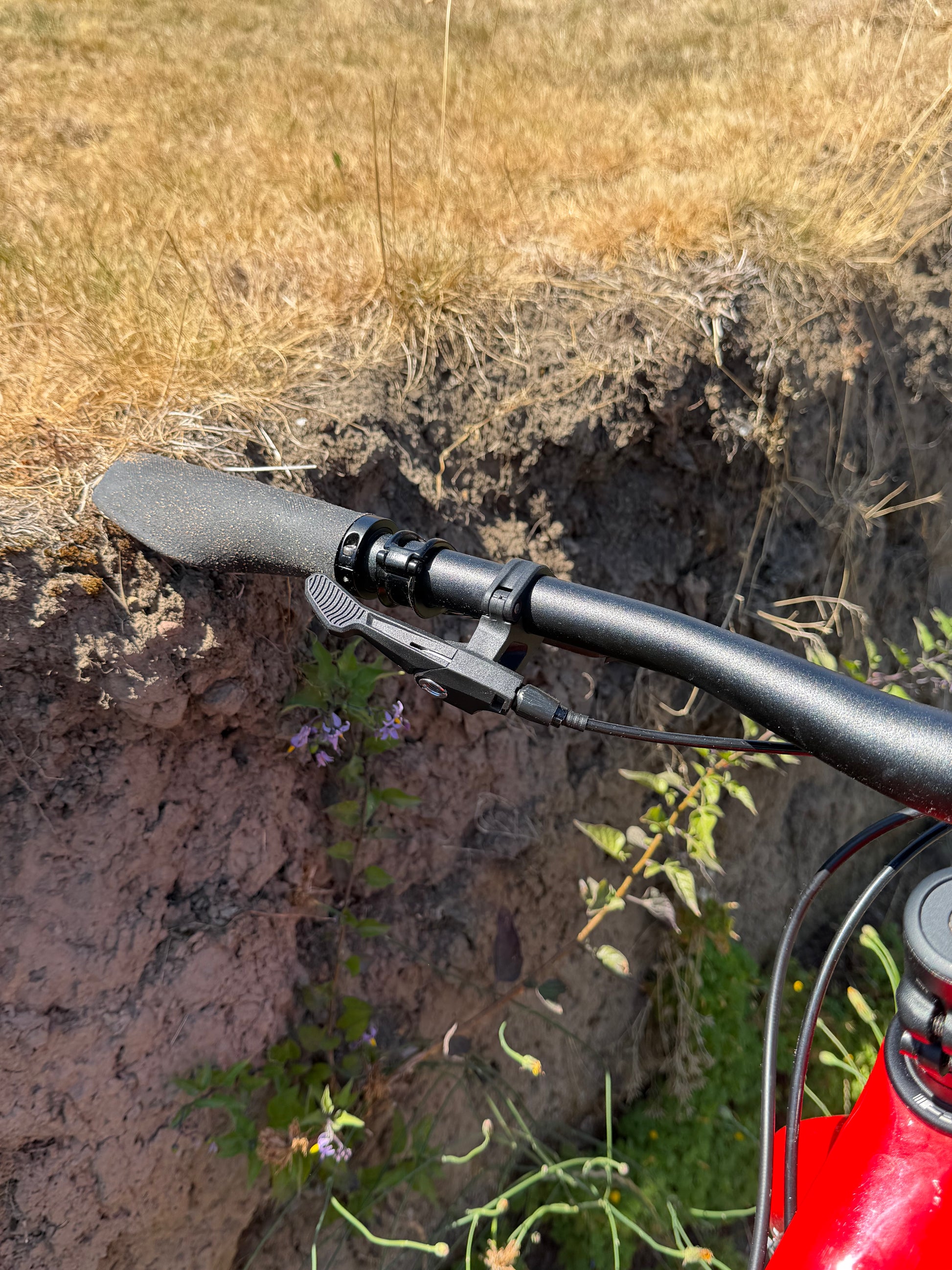

TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

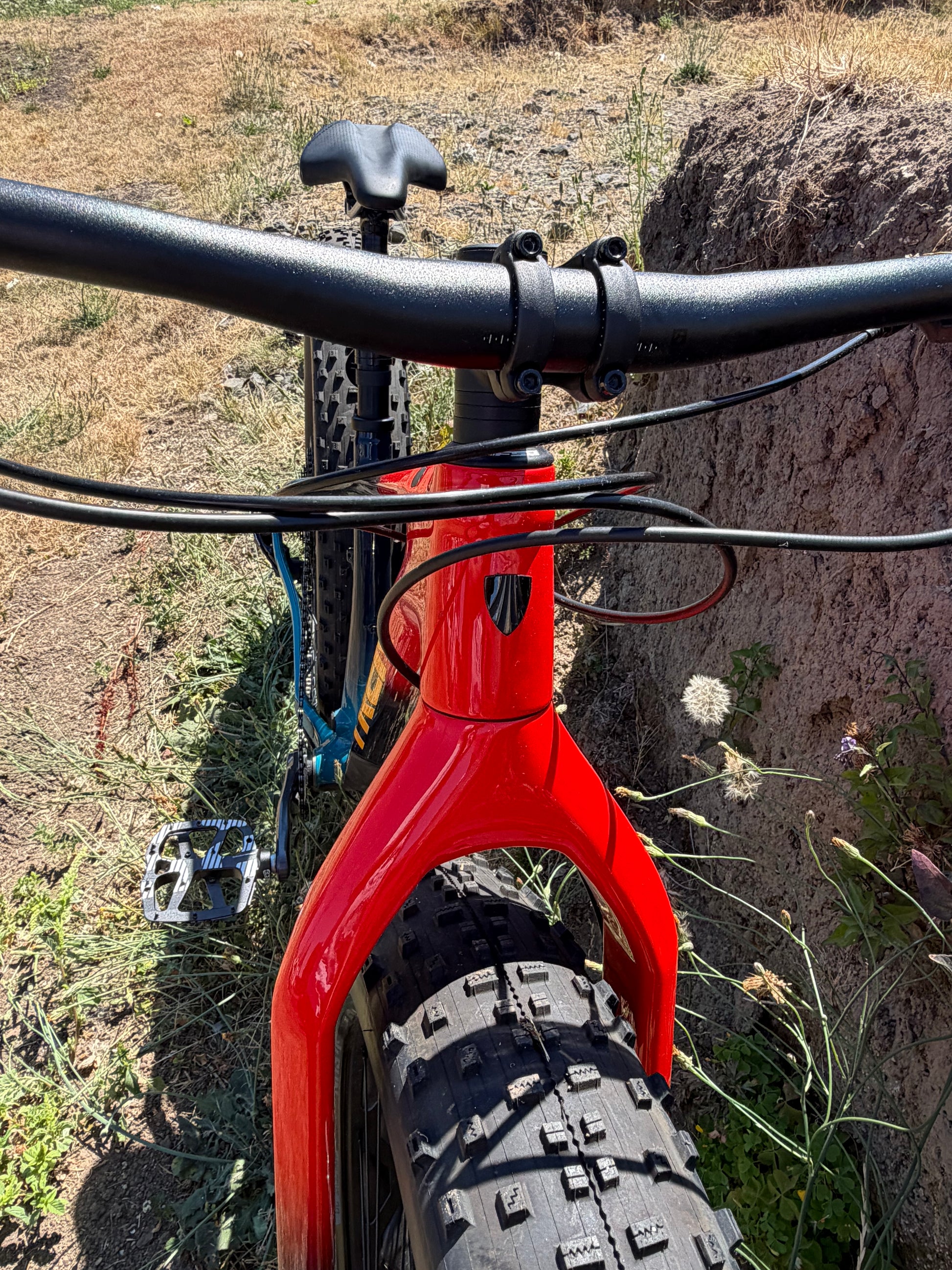

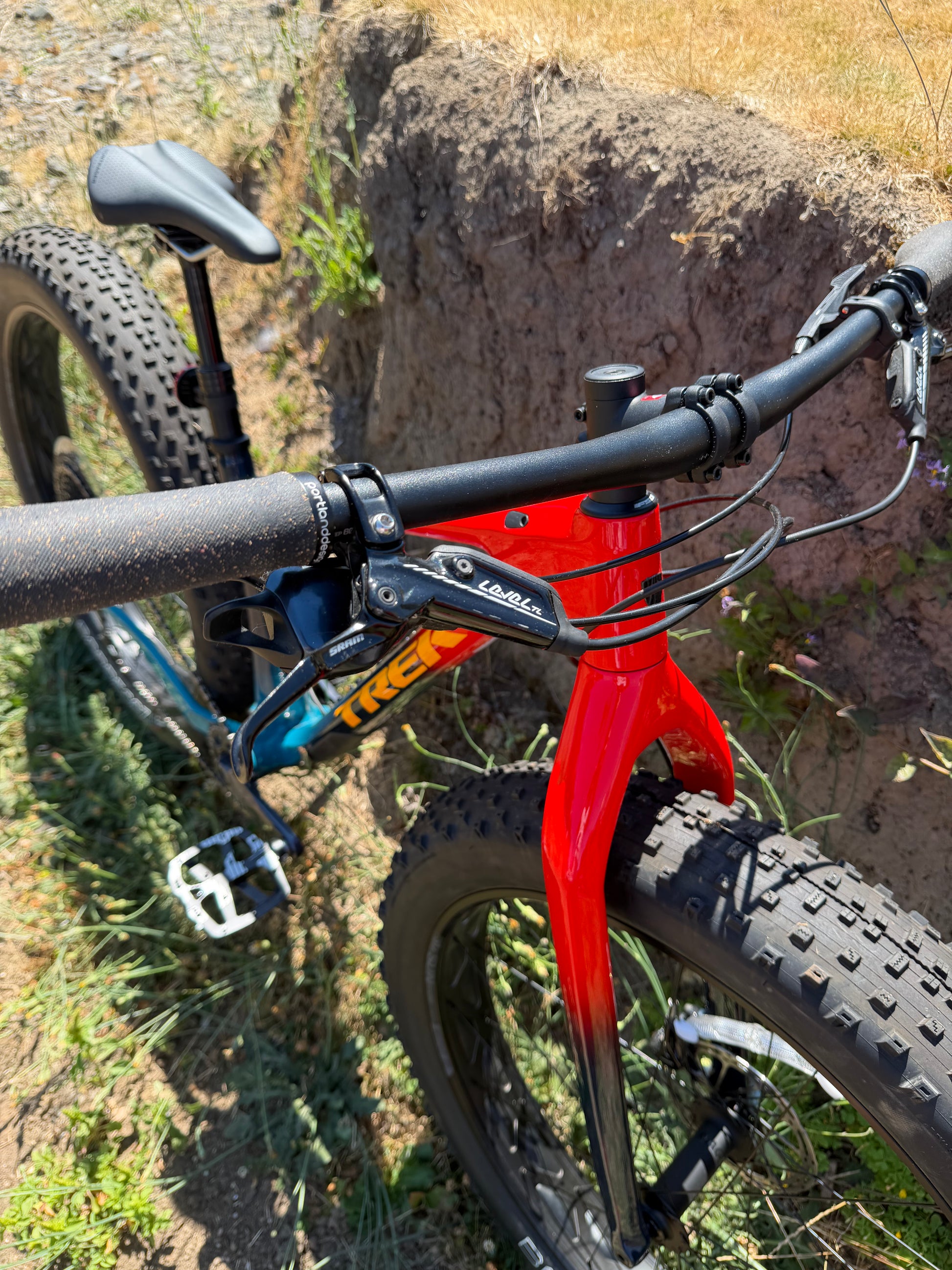

Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips: Portland

Design Works Cork Chop

Stem; Size: S

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: FSA IS-2, 1-1/8'' top, 1.5'' bottom
Brake rotor: SRAM CenterLine, 6-bolt, round edge, 160mm
Brake Set: SRAM Level TL hydraulic disc

Weight: M - 13.00 kg / 28.67 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

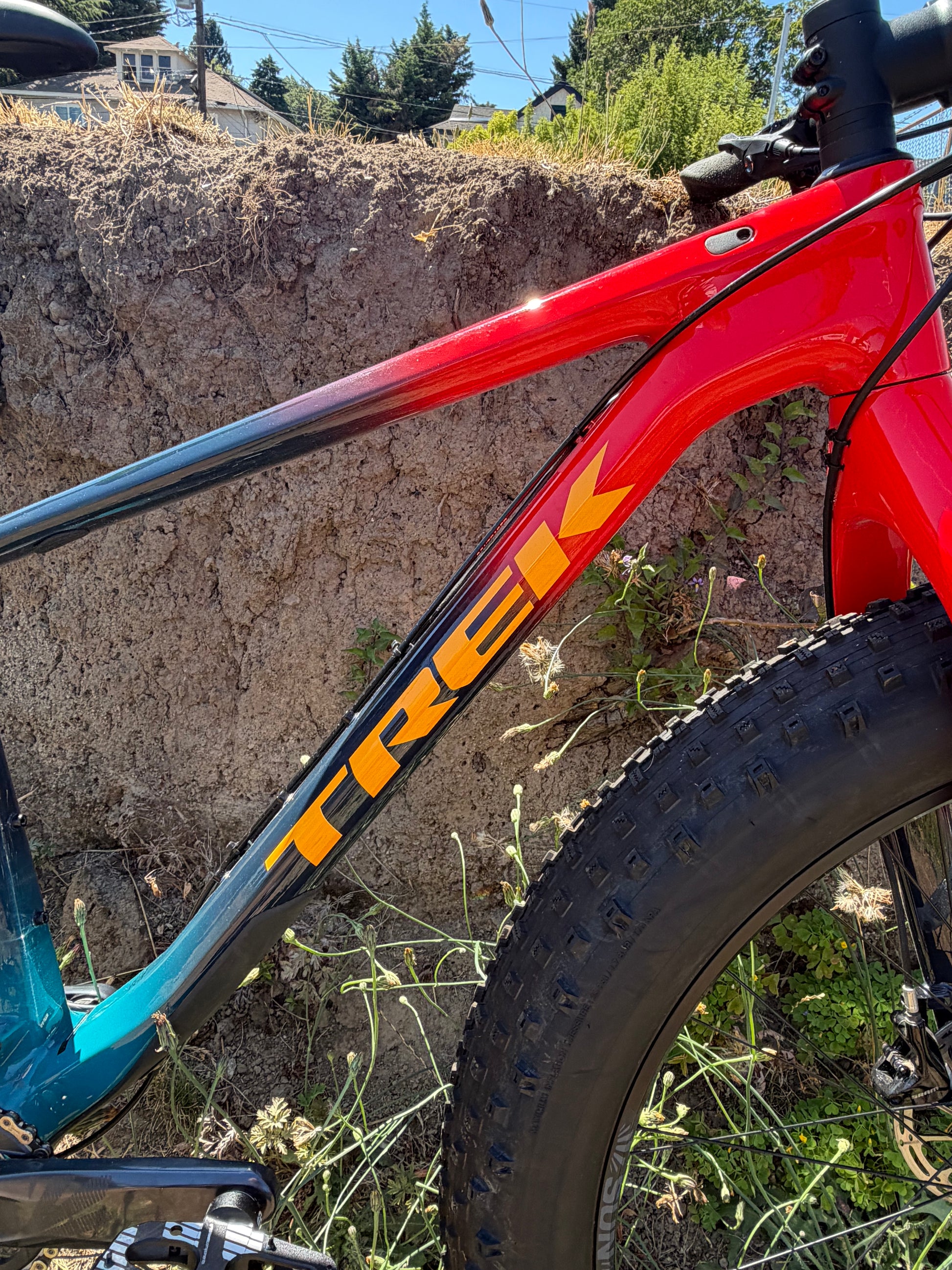

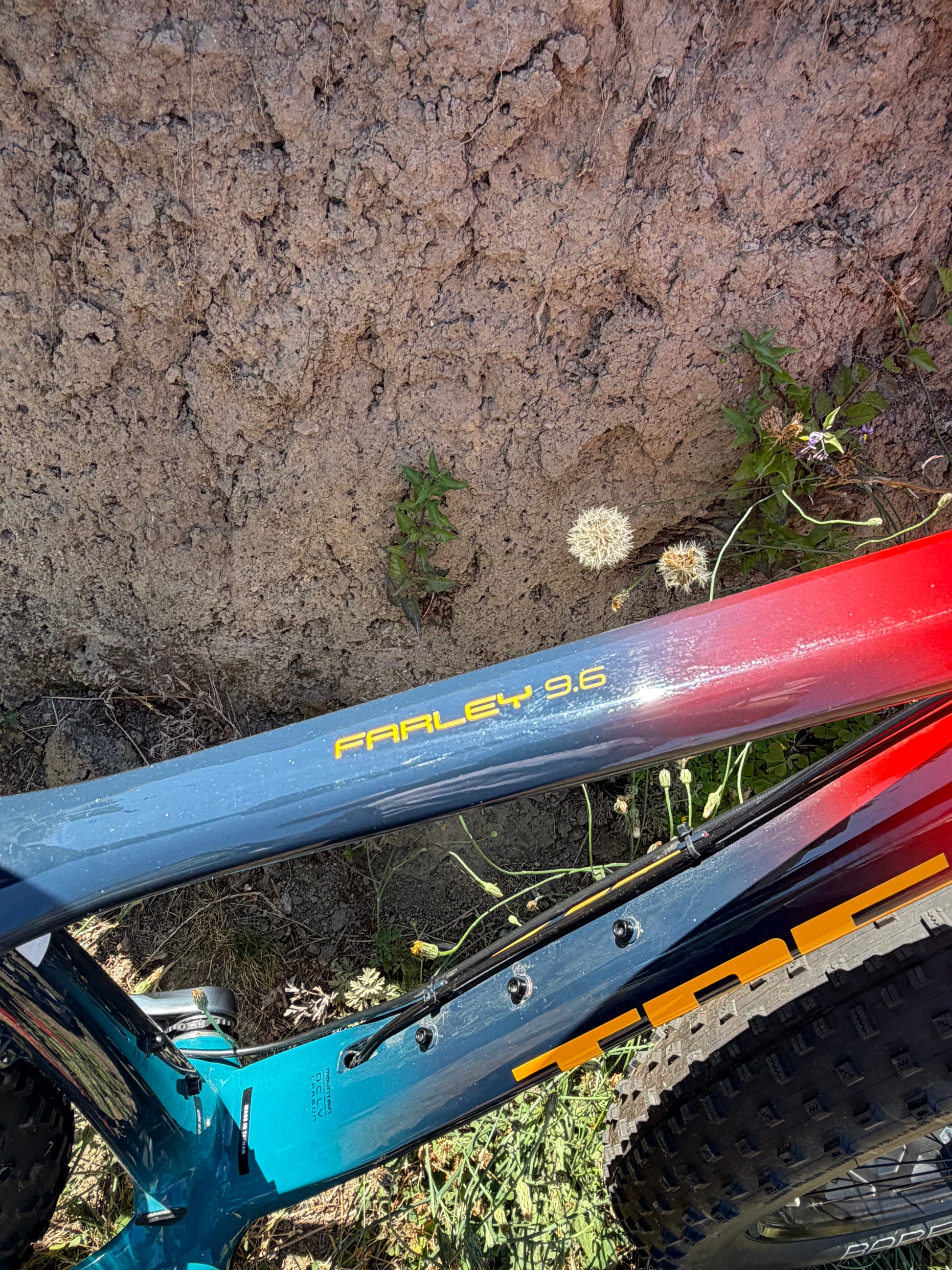

Color: Radioactive Red to Navy to Teal Fade
Condition: refurbished
